DEVOLOPMENT OF PRECISION

FORGING

OF GMB

Closed type forging with symetrically-split lower and upper die was developed for cross pins for automotive universal joint. In comparison to conventional flashed-forging, it could make a remarkable cost down by reducing machining work and saving material.
Closed die-set installed on existing press machine was developed to further increase productivity. It became popular worldwide in this industry.
However cross pins produced on current closed forging can not avoid a parting line caused by the split-dies. Furthermore unbalanced elastic deformation of punching shaft tends to result in deteriorating roundness of journals.
Machining process then becomes innevitable after forging process.

New die-set on our study enables all journals to be flash-free and to retain the roundness by controlling elastic deformation so that journal area produces net-shape without requiring machining. Our study will help contribute to further cost-down.

Image of the development of precision forging process

    STRUCTURE

    Using hydraulic bilateral style closed type die-set, upper side holds 4-split die moving in axial direction and lower side holds pressing cam as well as pull-back cam.

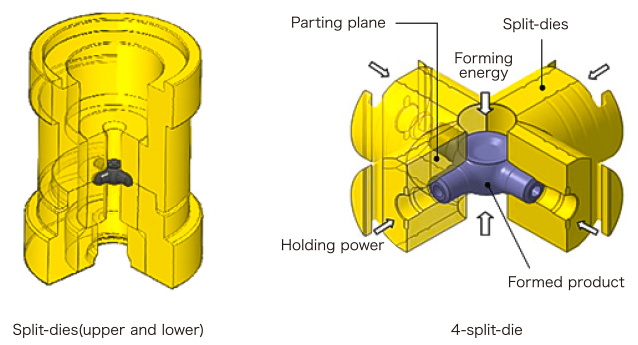

    Image of structure

    CHARACTERISTICS

  • 01

    Flash free in the journal area where accuracy is required.

  • 02

    Enables improved roundness at the journal area.

  • 03

    Die mold does not requres any adjustment work, since the deformation level of die-mold can be controlled by the pressing force.

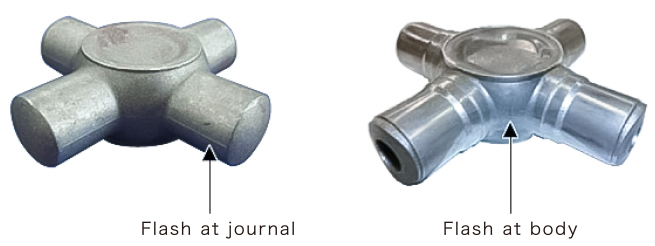

    • Image of characteristics
